EG4 18kPV Hybrid Inverter | EG4-18kPV-12LV | 48V Split Phase 120/240VAC | UL1741, CEC EG4 18kPV Hybrid Inverter | EG4-18kPV-12LV | 48V Split Phase 120/240VAC | UL1741, CEC Introdu

High-Efficiency Hybrid Inverter

$1.00

solar hybrid inverters

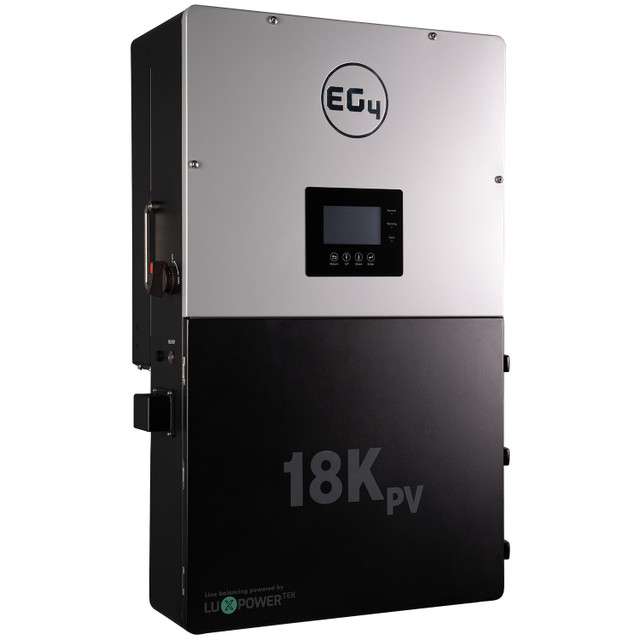

EG4 18kPV-12LV All-In-One Hybrid Inverter

Description for Baja Solar:
Baja Solar's EG4 18kPV-12LV is a robust hybrid inverter/charger designed for flexibility and efficiency, ideal for homes and businesses in Baja California Sur, Mexico. This inverter supports off-grid, grid-assist, and grid-tied modes, allowing for energy independence, backup from the grid, or selling excess energy. With its EMP-hardened design, it withstands natural or manmade disruptions, ensuring reliable operation.

Specifications:

  • PV Input: 18kW

  • AC Output: 12kW continuous, 120/240V or 120/208V split-phase

  • Number of MPPTs: 3, each with a maximum input of 600V DC

  • Parallel Capability: Up to 10 units for a combined 120kW output

  • DC Input Voltage Range: 100–600 VDC

  • Dimensions: 34.3 × 20.5 × 11.2 inches (87 × 52 × 28.5 cm)

  • Weight: 121.25 lbs (55 kg)

  • Certifications: UL 1741 SB, NEMA 4X, CEC, CSIP

  • Efficiency:

    • Max. Efficiency @ PV to Grid: 97.5%

    • Max. Efficiency @ Battery to Grid: 94%

    • MPPT Efficiency: 99.9%

    • Battery Charging Efficiency: 95%

    • Battery Discharging Efficiency: 94.5%

  • Idle Consumption: Approximately 70W in normal mode and 18W in standby mode

  • Communication: Built-in Wi-Fi for remote monitoring via the EG4 app

  • Safety Features:

    • Over-voltage protection

    • Over-current protection

    • Surge protection device

    • Anti-islanding protection

  • Warranty: 10-year warranty

Benefits for Baja Solar Customers:

  • Flexibility: Supports off-grid, grid-assist, and grid-tied modes.

  • Scalability: Can parallel up to 10 units for expanded capacity.

  • Efficiency: High MPPT efficiency and low idle consumption.

  • Safety: EMP-hardened design and comprehensive safety features.

Shipping Information:
For customers in Baja California Sur, shipping costs for this inverter will depend on its size and weight. Estimated shipping costs can range from $300 to $500 USD, depending on the shipping method and provider. Delivery times typically range from 7 to 14 business days.

Installation Tips:

  1. Ensure Proper Ventilation: Install the inverter in a well-ventilated area to prevent overheating.

  2. Secure Mounting: Use wall anchors or floor brackets to securely mount the inverter.

  3. Cable Management: Organize cables neatly to prevent damage and ensure easy access for maintenance.

This inverter is ideal for energy systems in Baja California Sur, offering flexibility, scalability, and advanced safety features for both residential and commercial applications.
