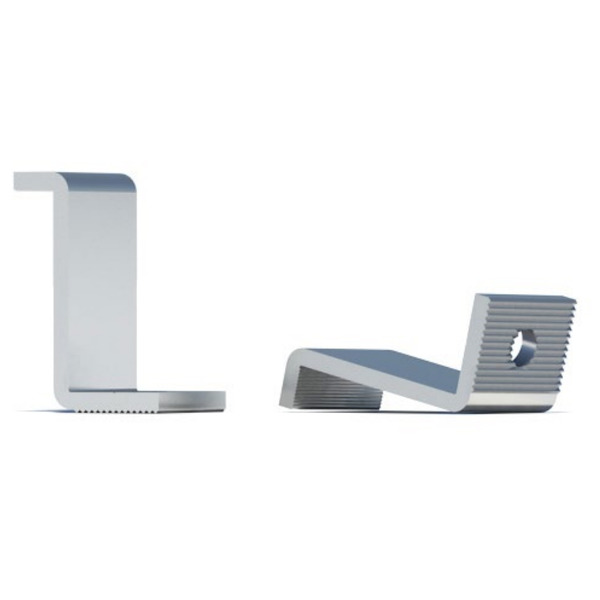

IronRidge BX System Bottom Clamp with Hardware – Flat Roof Ballasted Solar Mounting

High-Strength Aluminum Clamp for BX Flat Roof Solar Systems

$59.00

The IronRidge BX System Bottom Clamp with Hardware is a core mounting component designed for flat roof, ballasted solar installations.

Built from mill-finish 6000-series aluminum, this clamp securely anchors PV modules to the IronRidge BX Chassis while protecting conductors and maintaining clean, code-ready installations.

Used in conjunction with BX Top Clamps, this bottom clamp allows installers to place all clamps on the chassis first, set panels efficiently, and complete installs with fewer parts, fewer tools, and faster labor times.

Ideal for commercial and residential flat roof solar projects in Baja California Sur where wind, seismic, and membrane considerations matter.

✅ WHAT THIS CLAMP DOES

  • Secures PV modules to BX ballasted racking systems

  • Supports multiple module frame thicknesses

  • Protects PV conductors running row-to-row

  • Reduces part count and install complexity

  • Improves overall system power density

🔧 KEY FEATURES

  • Compatible with BX Top Clamps: 30mm, 32mm, 35mm, 38mm, 40mm, 46mm

  • 8–10% higher power density vs leading competitor systems

  • Enables ballast reduction or elimination depending on roof type

  • Meets wind and seismic design requirements

  • One-tool attachment for faster installs

  • Fewer than 10 total parts per project

  • No wind deflectors required

  • Free online design tools available from IronRidge

🧱 MATERIAL & BUILD

  • Material: 6000-series aluminum

  • Finish: Mill finish

  • Type: Ballast mounting component

  • Application: Flat roof solar installations

🏗 INSTALLATION NOTES

  • Install all Bottom Clamps onto the BX Chassis first

  • Place PV modules into position

  • Align matching Top Clamps above Bottom Clamps

  • Ensure clamps are fully seated, square, and torqued to spec

Designed for fast, repeatable, professional installs.

🏡 IDEAL FOR

  • Flat roof solar systems

  • Commercial solar projects

  • Residential low-slope roofs

  • Ballasted or hybrid racking designs

  • Solar installations in Baja California Sur

💰 PRICE

$59 USD each

(Hardware included)
