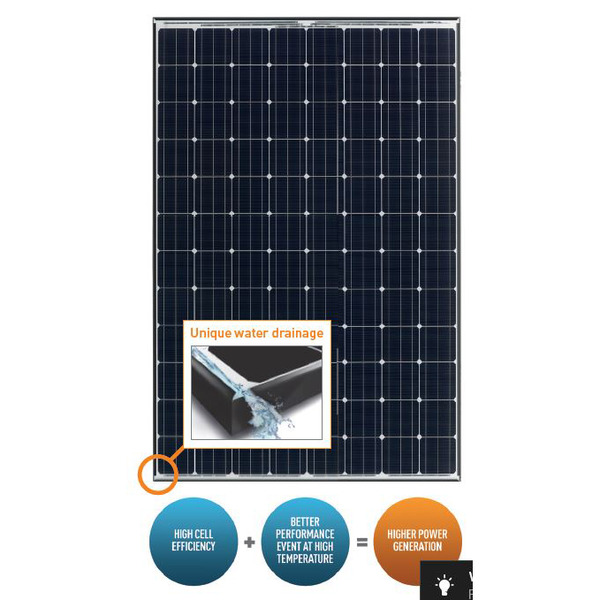

Panasonic HIT Power VBHN325SA17 325W Mono BLK/WHT Solar Panel
$2.00$1.00
Description
Panasonic HIT Power VBHN325SA17 325W Mono BLK/WHT Solar Panel
Photovoltaic Module HIT® - N330 Starting over 40 years ago with the research and development of amorphous silicon solar cell in 1975. Panasonic has been a solar pioneer since the beginning of the green revolution. In 1997, the HIT® set the industry standard for conversion efficiency. Satisfied customers worldwide have come to trust and rely on Panasonic quality ever since. Panasonic N330 solar panels have been manufactured to perform at high temperatures without jeopardizing its quality or efficiency. This product offers the industry's leading performance and value, using state-of-the-art manufacturing techniques. The N330 panel produces more output power than conventional crystalline panels. The solar modules are 100%emission free, have no moving parts and produce no noise. With the same number of panels installed on the roof, N330 can achieve up to 27%more system capacity compared to conventional crystalline panel (260W).
Technical Specifications
Watts PTC
301.2
Watts STC
325 W
Cells
96
Technology
HIT
Open Circuit Voltage (Voc)
69.6
Short Circuit Current (Isc)
6.03
Max Power Voltage (Vmpp)
57.6
Max Power Current (Impp)
5.65
Max Current
15 A
Efficiency
19.4
Max System Voltage
600 V
Frame Material
Aluminum
Frame Thickness (mm)
40
Frame Color
Black
Backsheet Material
White
Connector
MC4
Output Cables
PV Wire
Series Fuse Rating (Amps)
15
Temp Coefficient (Pmpp)
-0.26
Temp Coefficient (Voc)
-0.16
General Information
Dimensions
62.6 L x 41.5 W x 1.4 H In.
Weight
40.81 Lbs.
Approvals
UL
cUL
