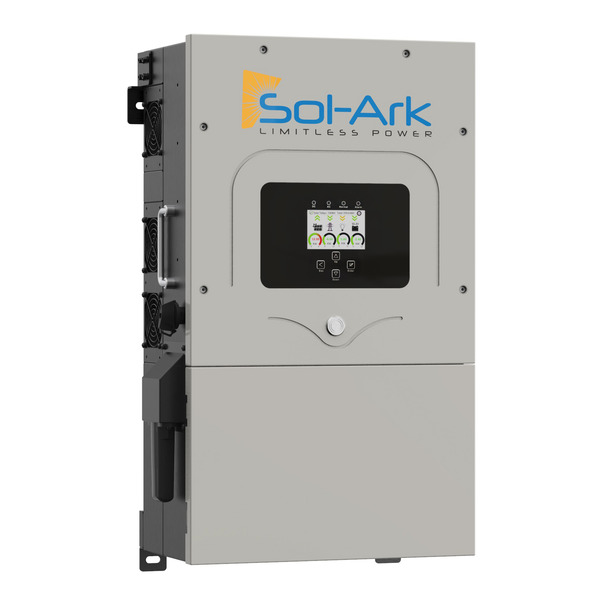

Sol-Ark 12kW 120/240/208V Hybrid All-in-One Stackable Inverter, SA-12K

$2.00$1.00

Description

Sol-Ark 12kW 120/240/208V Hybrid All-in-One Stackable Inverter, SA-12K

“The Swiss-Army Knife" of inverters

Features:

  • Remote programmable monitoring and configuration included

  • Next Generation Efficiency

  • 93% RTE - The most efficient in the world in/out of batteries

  • 120/240V single/split phase and 120/208V three-phase in the same unit

  • Stackable up to nine in parallel

  • Works with any generator

  • Works with any battery

  • Easy AC-couple retrofit

  • No microinverters, no optimizers necessary on new installs

  • All-in-One box

  • Easy plug 'n play install and inventory management

  • Everything needed for Grid Tied, Hybrid, or Off-Grid inside

  • Manages power from Solar, Battery, Grid, Load, and Generator simultaneously

  • 10-Year Standard Warranty Included

Technical Specifications

Continuous AC Power Output

9000 KW

Max Operating Voltage

425 V

Min Operating Voltage

150 V

AC Frequencies

50/60 Hz

Topology

Transformerless

Maximum DC Input Current

50 A

Peak Efficiency

97 %

CEC Efficiency

96.5 %

Number of MPPT's

2

Enclosure Ratings

NEMA-3R

General Information

Type

String Inverter

Datasheets

Datasheet

Datasheet

Installation Manuals

Installation Manual
